  • FRC800

FRC800

FRC800K1AN (49 State), FRC800K1A1 (California)

Rear tine tiller

  • 20" tilling width
  • Convenient "loop handle" design allows operation from either side
  • Self propelled - 3 forward speeds, 1 reverse
  • Commercial grade construction

MSRP

$3079*

Features

Easy starting Honda commercial OHV engine
Easy starting Honda commercial OHV engine

Superb power for digging in tough conditions. Durable commercial grade Honda 4-stroke engine offers easy starting, quiet operation, lower emissions, and easy refueling.

20" tilling width, 12" tine diameter

Make quick work of large tilling areas.

Convenient "loop handle" design allows operation from either side
Convenient "loop handle" design allows operation from either side

Allows the operator to safely operate the machine from the center, left or right positions. Makes it easier to turn the tiller around at the end of the row.

Self propelled - 3 forward speeds, 1 reverse
Self propelled - 3 forward speeds, 1 reverse

Multiple speeds offer more options for tilling and transportation. The commercial grade transmission provides long tiller life and less maintenance.

Heavy duty rear debris shield
Heavy duty rear debris shield

A full tine enclosure and full width rear shield provides operator protection and helps create a smooth, well tilled appearance to your garden.

Low maintenance Honda Cyclone air filter
Low maintenance Honda Cyclone air filter

Low maintenance, yet extremely effective, the Cyclone air filter uses a special cup to separate debris and dust. The reduced maintenance is especially helpful for rental applications.

Protective front guard
Protective front guard

Provides protection and makes the tiller easy to tie down for transport.

Easy access controls
Easy access controls

A simple, straightforward design that controls both tine and drive wheel engagement. Easy to reach, ergonomically designed controls are intuitive for rental and first time users.

Adjustable depth bar

Adjust the tilling depth for optimal performance in a variety of conditions.

Pick your height - 4-position handlebar

Adjust the handle position up or down to offer a comfortable operating height.

Side tine shields allow tilling close to fences and plants

Helps protect plants and prevents tines from catching fences and other structures when tilling close by.

Reverse lock-out for safer operation

For operator safety, prevents tines from being engaged in reverse.

Specifications

Official Model Name FRC800K1AN (49 State), FRC800K1A1 (California)
Tiller Type Rear Tine
Tilling Width 20"
Tine Diameter 12"
Engine Honda GX240
Displacement 270cc
Air filter dual element w/cyclone filter
Fuel capacity 4.6 qt
Transmission Speeds 3 - forward 1 - reverse
Tine speed @max engine speed 225 rpm
Transmission Type chain and gear drive
Dimensions (LxWxH) 65.4" x 24.0" x 49.0"
Dry Weight 265 lb.
Residential warranty 24 months
Commercial warranty 12 months

Accessories

Furrow Attachment

How to Videos

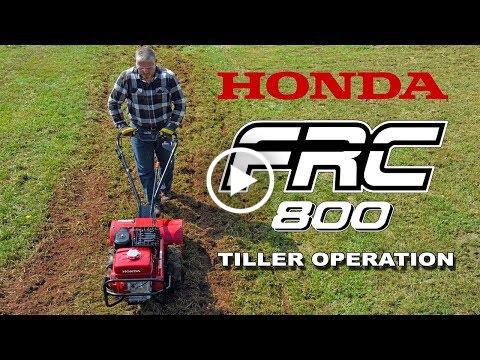

FRC800 Operation
